20FT 40FT 45FT Flatbed Semi Trailer with Mechanical or Air Suspension

Products

Farm Trailer & Other Full Trailer

20FT 40FT 45FT Flatbed Semi Trailer with Mechanical or Air Suspension

MOQ:	1 UNIT
Standard Packaging:	Export standard
Delivery Period:	25 days
Payment Method:	T/T

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

AOTONG

Certification

ISO,CCC

Suspension:

Mechanical Or Air Suspension

Tyre Specifications:

12R22.5

Main Beam:

Heavy Duty I Beam.

Kin Pin:

2’’/3.5’’ Bolt Type

Braking System:

Double Air Chamber ,brake Valve,45L Air Tanks ;ABS Optional

Electrical:

LED Light , 7 Ways ,24V

Painting:

Blasting And Clean Rust,1 Coat Of Prime Painting ,2 Coat Of Finish Painting

Highlight:

20FT flatbed semi trailer

40FT mechanical suspension trailer

45FT air suspension semi trailer

Product Description

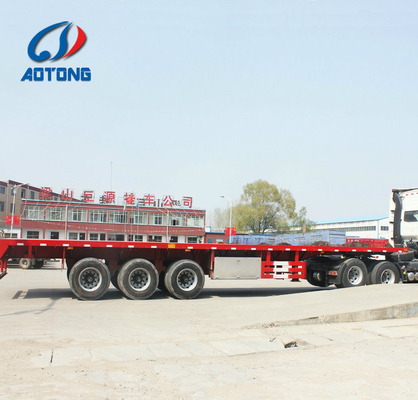

The Bulk Carrier flatbed Semi Trailer is a multi-functional means of transportation, which is widely used in logistics, transportation, manufacturing and other industries to transport bulk cargo containers and other goods. Its design is simple and robust, safe and durable, making it a heavy-duty vehicle for daily cargo transportation.

Size	12480mm2480mm1550mm(Optional)
Payload	30ton 40ton 50ton 60ton 80ton
Main beam	Top flange 10/12/14/16mm;Middle Flange 6/8/10/12mm ;bottom flange 12/1416/18mm
Side beam	16/18/20# channel steel(Q235) Or G shape side beam
Cross member	8/10/12# channel steel(Q235)
Floor	2/3/4mm checkered plate
Axle	3 axle FUWA/BPW or local brand 13T
Suspension	Mechanical American type suspension or air suspension
Leaf spring	10pcs13mm90mm or air bag
Tire	12R22.5 12pcs brand and model optional
Wheel rim	9.0-22.5 12pcs brand and model optional
Kingpin	Jost brand 2/3.5" bolt-in king pin
Landing gear	Jost or FUWA brand or local brand two-speed, manual operating ,heavy duty landing gear 28T
Twist lock	4/8/10/12pcs
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	WABCO ABS
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anti corrosive prime,2coats of final paint
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light
Package	Nude spray wax or put in 40ft container

20FT 40FT 45FT Flatbed Semi Trailer with Mechanical or Air Suspension 0

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.
