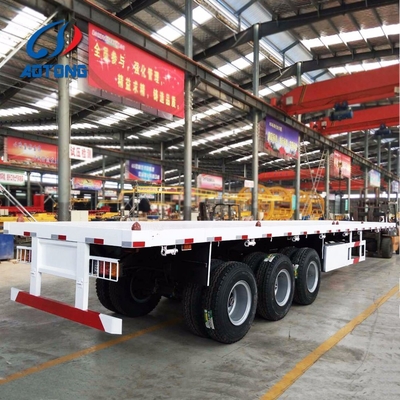

40-65FT Heavy Duty Flatbed Semi Trailer with Air Suspension

Products

Farm Trailer & Other Full Trailer

40-65FT Heavy Duty Flatbed Semi Trailer with Air Suspension

MOQ:	1 UNIT
Standard Packaging:	Export standard
Delivery Period:	25 days
Payment Method:	T/T

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

AOTONG

Certification

ISO,CCC

Suspension:

Mechanical Or Air Suspension

Tyre Specifications:

12R22.5

Main Beam:

Heavy Duty I Beam.

Kin Pin:

2’’/3.5’’ Bolt Type

Braking System:

Double Air Chamber ,brake Valve,45L Air Tanks ;ABS Optional

Electrical:

LED Light , 7 Ways ,24V

Painting:

Blasting And Clean Rust,1 Coat Of Prime Painting ,2 Coat Of Finish Painting

Highlight:

40-65FT flatbed semi trailer

heavy duty air suspension trailer

container semi trailer with air suspension

Product Description

Product details:
Using Q345 steel with higher strength, it has strong durability and is suitable for long-distance transportation needs.
Usually 2-4 axles, some heavy-duty models can be equipped with more axles.
The length can be customized according to user needs, using fully automatic submerged arc welding and carbon dioxide gas shielded welding. After welding, shot blasting treatment is carried out to improve the adhesion of the paint surface.
Adopting a unique leaf spring downward suspension system with variable cross-section leaf springs, it provides good driving smoothness.

Product parameters
product name	Flatbed semi-trailer
Self-dumping	Not Self-dumping
Size	13000-2000025504000
Material	Steel
Carrying capacity	30-100T
Platform	4/5/6mm
Landing Gear	28 Tons , Two Speed Manual Operation
Main beam	5/6mm,Height 500mm Q345 carbon steel
Side beam	5/6mm
Hanging	Air suspension/Mechanical
leaf spring	90 (width) mm * 13 (thickness) mm * 10 layers
Axis	3/4/5-axis
Tires	12R22.5 12/16/20
Rims	8.5-20, 9.0-20
Brake chamber	T30/30 Spring brake chamber. WABCO /KANGJIAN valve,ABS/EBS system optional. dual line brake pipe
ABS Anti-lock Braking System	Standard Configuration/Optional
Electrical System	1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Twist Locks	12 Units ISO Tht Brand
Painting	Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
toolbox	A standard toolbox
Certification	ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
Production Capacity	2000
Transport Package	in Nude/Wax spray or tarpaulin cover
Origin	Shandong

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.
