PRODUCTS DETAILS

Home > Products >

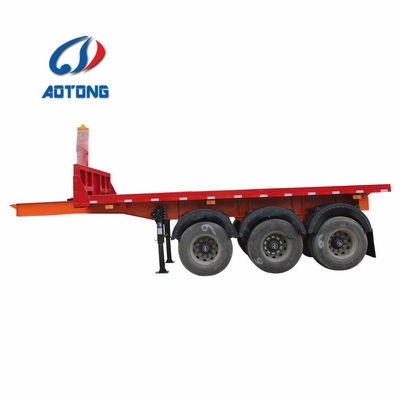

20ft/40ft Flatbed Container Transport Chassis Tipper 3 Axles Hydraulic Tipping Trailer

Products

Farm Trailer & Other Full Trailer

20ft/40ft Flatbed Container Transport Chassis Tipper 3 Axles Hydraulic Tipping Trailer

MOQ:	1 UNIT
Price:	$13,500.00/sets 1-2 sets
Standard Packaging:	Exporting Standard
Delivery Period:	25 days
Payment Method:	TT

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

AOTONG

Certification

ISO,CCC

Use:

Other Trailers

Max Payload:

30-40ton

Size:

20ft ,40ft

Type:

Chassis Tipper

Material:

Steel

Suspension:

Steel Spring

Brake:

16ton Brake Pad With 30/30 Brake Chamber

Tire:

1200r20 Triangle

Axle Brand:

FUWA, ZY, Aotong

Product Name:

Container Chassis Tipper

Axle:

2 Or 3

Axles Loading:

13t Or 16t

Color:

Customised

Product Description

Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more than 30 years of production experience serve for you —AOTONG

Product	20f skeleton dump semi trailer	flatbed dump semi trailer
Size	770025003070 (mm)	(8000-12500)25001600 (mm)
Payload	40000KG	50000KG
Main beam	Heavy duty I beam.
Twist lock	4
Cylinders	HYVA
Axles	3 * 13ton capacity (Brand optional)
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	10pcs
Tire	12R22.5 12pcs (Other size optional)
Rim	9.00-22.5 12pcs (Other size optional)
Kin pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,40L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting

AOTONG skeleton/flatbed dump trailer can satisfy the concentrated force, the anti bump and the distortion resistance.

AOTONG make sure that skeleton/flatbed dump semi trailer can meet load requirements on different kind of roads and has a long service life.

AOTONG start from every detail, carefully craft to customize your high-quality semi trailer.

Excellent design ability

We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！

Related Products

We also have rich production experience in the following models.

If this item is not what you like, then we suggest these items：

Click to get the models that have been shipped to your country！

20ft skeleton semi trailer

40ft skeleton semi trailer

45ft skeletonsemi trailer

Superlink skeleton semi trailer

Side loader semi trailer

Dump skeleton semi trailer

Spead trailer

Terminal trailer

Flatbed trailer with bolster

2 axles flatbed semi trailer

3 axles flatbed semi trailer

4 axles flatbed semi trailer

Superlink flatbed semi trailer

extendable flatbed semi trailer

flatbed trailer with detachable sidewall

Packing&Shipping

In nude,Polish with water wax before shipment

1. By 40ft/45ft/40fr container

2. By bulk /roro ship

3. As your requirments.

Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.

High quality painting and professional transportation ensure good condition of goods. We believe that we can win-win by providing detailed services.
