PRODUCTS DETAILS

Home > Products >

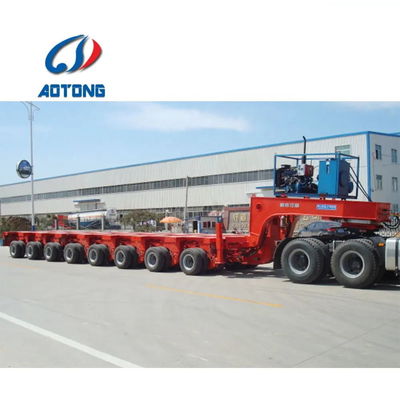

Multi Axles Bridge Girder Transport Semi-Trailer with Hydraulic Axis Steerable Cast

Products

Farm Trailer & Other Full Trailer

Multi Axles Bridge Girder Transport Semi-Trailer with Hydraulic Axis Steerable Cast

MOQ:	1 UNIT
Price:	$150,000.00/sets >=1 sets
Standard Packaging:	Exporting Standard
Delivery Period:	25 days
Payment Method:	TT

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

AOTONG

Certification

ISO,CCC

Use:

Truck Trailer

Type:

Semi-Trailer

Material:

Steel

Size:

As Your Requirement

Max Payload:

70-90ton

Manufacture:

Liangshan Juyuan Special Vehicle Manufacturing Co., Ltd

Color:

As Customer's Requirement

Tool Box:

One Or More

Product Description

Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more than 20 years of production experience serve for you —AOTONG

Brand	Aotong
Rated Capacity	35000kgs /Row @ 0.6Km/h
Tare Weight	3100 kgs/Row
Material	S690, AH60, 40Cr high tensile Steel
Loading Deck Height	1175±300mm
Width of Platform	2990mm-3000mm
Max Steering Angle	+/-55°
Brake	Dual line pneumatic brake system,T30/30+T30 air chamber; parking brake;
Electrical System	24V, 7core socket, lights according to European standards.
Wheelbase	1500mm
Tire	215/75R17.5
Rim	6.00-17.5 (10holes)
Approaching Angle	25°/ 28°
Suspension	Hydraulic Air suspension with lifting and steering / Axle Steering
Tire & Rims No /line	8 sets
Connection Platform	Optional by Cargo / Machine Size
Pin Height	According to the height of the tractor saddle.
Painting	Three coats painting; Any color will be available
Welding	automatic submerged arc welded
Lights	Rear light, rear reflector, turn indicative light, side
Lights		reflector, fog lamp, number plate light
Painting	Three coats painting; Any color will be available
Tool Box	One tool box with a set of standard trailer tools
Tyre Carrier	One piece
Electrical	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) Euro Standard
Exw-factory	Wax -spray
Color and Logo	Depends on the buyer’s requirement.
Product Production	New Made and Stock Optional
Tool Box	1 box of standard tools
Spare tire carrier	2 sets

AOTONG modular trailer can satisfy the concentrated force, the anti bump and the distortion resistance.

AOTONG make sure that modular semi trailer can meet load requirements on different kind of roads and has a long service life.

We start from every detail, carefully craft to customize your high-quality semi trailer.

Excellent design ability

We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！

Popular Colors and High Quality Painting

We use high quality paint to make our products beautiful, seamless, dustproof and easy to clean.KTL electrophoresis + powder
spraying, instead of traditional paint process to make a good bond with a solid base, good wear resistance, durability and has
good anti-corrosion effect and long paint life.
Which color do you want to customize, click to get more!

Related Products

We also have rich production experience in the following models.

If this item is not what you like, then we suggest these items：

Click to get the models that have been shipped to your country！

2 axles lowbed semi trailer

3 axles lowbed semi trailer

4 axles lowbed semi trailer

Multi axles lowbed semi trailer

Extendable lowbed semi trailer

Detachable gooseneck semi trailer

Modular trailer

Multi line axle lowbed semi trailer

lowbed semi trailer with side wall

Our lowbed semi trailer ladder has a rib design to increase its load carrying capacity.
A variety of ladder can be selected, ordinary ladder, spring ladder, hydraulic ladder, hydraulic folding ladder. The spring ladder can be lowered by its own weight. Hydraulic ladder reduces labor strength. Folding the ladder will lower the up and down slope.

Packing&Shipping

In nude,Polish with water wax before shipment

1. By 40ft/45ft/40fr container

2. By bulk /roro ship

3. As your requirments.

Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.

High quality painting and professional transportation ensure good condition of goods.

We believe that we can win-win by providing detailed services.

Other Hot Products

20ft 40ft 45ft 48ft 50 ft flatbed trailer $8,000.00 - $13,000.00 / Set

1Sets

20ft 40ft skeleton containe trailer $7,000.00 - $12,000.00 / Set

1Sets

superlink skeleton containe trailer $10,000.00 - $22,000.00 / Set

1Sets

3 axles side wall cago truck tailer

$10,000.00 - $20,000.00 / Set

1Sets

3 axles fence cargo truck trailer

$11,000.00- $15,000.00 / Set

1Sets

livestock cattle transport trailer $16,000.00 - $22,000.00 / Set

1Sets

3 axles U shape dump truck trailer $12,000.00 - $18,000.00 / Set

1Sets

20ft 40ft rear skeleton trailer

$8,000.00 - $14,000.00 / Set

1Sets

5-12 car transporter car carrier trailer $15,000.00 - $30,000.00 / Set

1Sets

2 axle 3axle agriculture farm trailer $6,000.00 - $10,000.00 / Set

1Sets

bulk powder cement tanker trailer

$18,000.00 - $20,000.00 / Set

1Sets

3axle Oil fuel tank semi truck trailer

$12,000.00 - $18,000.00 / Set

1Sets

HOWO dump truck 12 tyres 6*4 371 $45,000.00 - $60,000.00 / Set

1Sets

HOWO 40m3 dump truck 12 tyres 8*4

$45,000.00 - $60,000.00 / Set

1Sets

superlink skeleton containe trailer $50,000.00 - $220,000.00 / Set

1Sets

Company Introduction

★1. Years of production experience, good at controlling product quality. Choosing us, you choose professional supplier. ★2. we gain Compulsory Product Certificate (CCC Certificate) , Information of P.R.C, ISO9001 certificate ,8 patent certificates , WIPO MADRID The Internationa Trademark System and etc.Provide strong technical support and quality assurance for your semi trailer. ★3. We have a professional and enthusiastic service team .According to your order, we provide suitable trailer.
