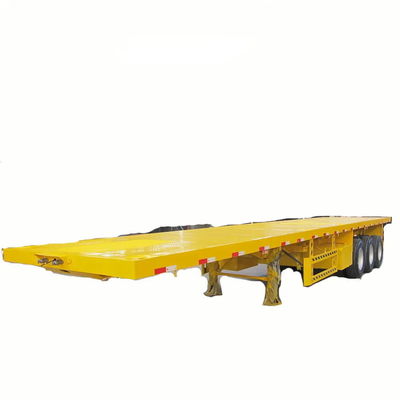

Truck Trailer 20ft 40ft Container Chassis Semi Trailer with Heavy Duty Terminal Yard

Products

Farm Trailer & Other Full Trailer

Truck Trailer 20ft 40ft Container Chassis Semi Trailer with Heavy Duty Terminal Yard

MOQ:	1 UNIT
Price:	$11,100.00/sets 1-2 sets
Standard Packaging:	Exporting Standard
Delivery Period:	25 days
Payment Method:	TT

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

AOTONG

Certification

ISO,CCC

Use:

Truck Trailer

Type:

Semi-Trailer

Material:

Steel

Size:

Customised

Max Payload:

30-100T

Product Name:

Container Trailer

Color:

Customers Optional

Tire:

11.00r20 12r22.5 315 385

Suspension:

Common Mechanical

Landing Gear:

Heavy Duty Landing Gear

King Pin:

2"(50mm)or3.5"(90mm) JOST

Axle:

13 Ton Fuwa Brand

Brake System:

Dual Line Braking System

Function:

Transport 20ft 40ft Container

Main Beam:

Hight:500mm

Product Description

Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more than 30 years of production experience serve for you —AOTONG

Name	2 axles 20ft skeleton semi trailer	2 axles 40ft skeleton semi trailer	3 axles 40ft skeleton semi trailer	3 axles gooseneck 45ft skeleton semi trailer	Interlink skeleton semi trailer
Size	700025001500 (mm)	1250025001500 (mm)	1400025001500 (mm)	1400025001500 (mm)	1425025001500 (mm)
Payload	30000KG	40000KG	50000KG	50000KG	30000KG+30000KG
Main beam	Heavy duty I beam.	Heavy duty I beam	Heavy duty I beam.	Heavy duty I beam.	Heavy duty I beam.
Axles	2 * 13ton capacity (Brand optional)	2 * 13ton capacity (Brand optional)	3 * 13ton capacity (Brand optional)	3 * 13ton capacity (Brand optional)	13ton capacity (2+2 or 3+3 optional)
Twist locks	4 pcs	12 pcs	12 pcs	12 pcs	8pcs
Landing gear	28 Ton two speed	28 Ton two speed	28 Ton two speed	28 Ton two speed	28 Ton two speed *2
Braking system	Double air chamber ,brake valve,32L air tanks ;ABS optional	Double air chamber ,brake valve,40L air tanks ;ABS optional	Double air chamber ,brake valve,40L air tanks ;ABS optional	Double air chamber ,brake valve,40L air tanks ;ABS optional	Double air chamber ,brake valve,40L air tanks ;ABS optional
Tire	12R22.5 8pcs (Other size optional)	12R22.5 8pcs (Other size optional)	12R22.5 12pcs (Other size optional)	12R22.5 12pcs (Other size optional)	12R22.5 24pcs (16pcs) (Other size optional)
Rim	9.00-22.5 8pcs (Other size optional)	9.00-22.5 8pcs (Other size optional)	9.00-22.5 12pcs (Other size optional)	9.00-22.5 12pcs (Other size optional)	9.00-22.5 24pcs (16pcs) (Other size optional)
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	10pcs
Kin pin	2’’/3.5’’ bolt type
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting

AOTONG skeleton trailer can satisfy the concentrated force, the anti bump and the distortion resistance.

AOTONG make sure that skeleton semi trailer can meet load requirements on different kind of roads and has a long service life.

AOTONG start from every detail, carefully craft to customize your high-quality semi trailer.

Excellent design ability

We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！

Related Products

We also have rich production experience in the following models.

If this item is not what you like, then we suggest these items：

Click to get the models that have been shipped to your country！

20ft skeleton semi trailer

40ft skeleton semi trailer

45ft skeletonsemi trailer

Superlink skeleton semi trailer

Side loader semi trailer

Dump skeleton semi trailer

Spead trailer

Terminal trailer

Flatbed trailer with bolster

2 axles flatbed semi trailer

3 axles flatbed semi trailer

4 axles flatbed semi trailer

Superlink flatbed semi trailer

extendable flatbed semi trailer

flatbed trailer with detachable sidewall

Packing&Shipping

In nude,Polish with water wax before shipment

1. By 40ft/45ft/40fr container

2. By bulk /roro ship

3. As your requirments.

Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.

High quality painting and professional transportation ensure good condition of goods. We believe that we can win-win by providing detailed services.
