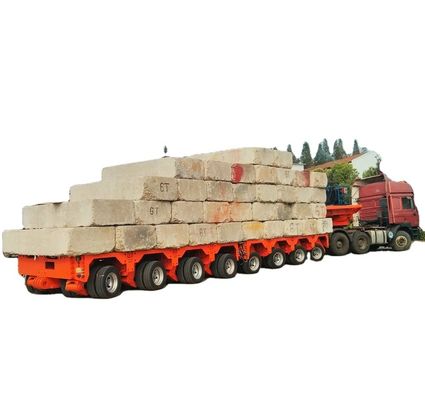

Hydraulic Steering Axle Trailer for Transporting Overweight and Heavy Cargo Loads

Products

Farm Trailer & Other Full Trailer

Hydraulic Steering Axle Trailer for Transporting Overweight and Heavy Cargo Loads

MOQ:	1 UNIT
Price:	$130,000.00/sets >=1 sets
Standard Packaging:	Exporting Standard
Delivery Period:	25 days
Payment Method:	TT

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

AOTONG

Certification

ISO,CCC

Use:

Truck Trailer

Type:

Semi-Trailer

Material:

Steel

Size:

Customised

Max Payload:

120T

Function:

Heavy Equipment Carrier

Axle:

Multi Line-axle

Tire:

12R22.5 Or Other Sizes

Suspension:

Hydraulic Suspension

Brake System:

Dual Line Braking System With ABS

Gooseneck:

Hydraulic With Power Station

King Pin:

2"(50mm)or3.5"(90mm) JOST

Color:

Customised

Condition:

Brand-new

Usage:

Heavy Objects Transportation

Product Description

hydraulic steering flat lowbed semi trailer/modular trailer/special vehicle transporting over heavy cargo

Product Description

MODULAR TRAILER Application:

1. This series modular trailers are mainly suitable for heavy equipments transportation,this series modular trailer is mainly adopted of hydraulic system and modular can be combinated accordingly.

2. The capacity is maximum 500tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: hydraulic suspensions.
5. The loading deck can be with concave beams.

Main Description on the Hydraulic Gooseneck Modular Semi Trailer
Tech Parameter- Per 2 Rows Line-Axle Modular
Centerline Tare Weight	9T
Rated Capacity	320T
Suspension	Stroke hydraulic + / - 300 mm
Basic module width	3000 mm +3000 mm
Angle of rotation axis	±55°
The control system	Integrated into the central frame
Air cylinders
Oil tank
Main beam Material	AH60,40Cr
Main Parts	16 line-axles
Loading Capacity	20 tons per line-axle
Axles	32 axles
Tire Size and Numbers	215/75 R 17.5; 128 tires
Outside Dimension	15000mm6000mm1750+300mm
Wheelbase	1500mm
Modules Connections	Sidebattle for different combinations. Axle units mounted on the frame by bolting
Equipment for Modular Combinations
Diesel Power Plant	22 KW
Standard Shaft	3000mm long, flexible coupling ring, diameter 50 mm
Operating head	2 file combination
Wireless RemoteControl	Handheld operator panel / Transmitter - 1 piece
Braking system	Dual line braking system with automatic air brake and ABS
Operating panel	1 pc with leveling system
Alarm panel	2 pairs
Flashing light	2 pcs
Tool Box	1 set of standard tools

Hydraulic Steering Axle Trailer for Transporting Overweight and Heavy Cargo Loads 0

Hydraulic Steering Axle Trailer for Transporting Overweight and Heavy Cargo Loads 1

Packaging & Shipping

We will spary wax for the modular trailer before shipment against saltwater corrosion.

Regarding to the shipping method, you could choose which one is better for you, by container vessel, Ro-Ro vessel or by bulk vessel.

Hydraulic Steering Axle Trailer for Transporting Overweight and Heavy Cargo Loads 2

Welcome to visit our factory and we will pick you up at airport!

Production Machinery:

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used
CNC Flame Plasma Cutting Machine	GS	2	4.0
Press Machine	JC21-160	4	4.0
Hydraulic Plate Bender	WC67Y-200/4000	2	3.0
Hydraulic Pendulum Plate Shears	QC12Y-12*3200	2	3.0
Drilling Machine with Jointed Arm	ZN3050*16	4	4.0
Shaping Machine	BS6065	2	4.0
Universal Rotary Milling Machine	X6232	1	4.0
CNC Lathe	EL6140N	2	4.0
Saw Machine	GD4028N	2	5.0
Expander	ZX-3000	1	3.0
Rolling Machine	W11-4-200	2	3.0
Automatic Round Welding Machine	W11SNC-10-6500	1	4.0

Testing Machinery:

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used
Vernier Caliper	0.02 mm	2	3.0
Ultrasonic Thickness Gauge	SMART SENSOR	1	3.0
Sound Level Meter	AZ8928	1	3.0

Our Services

1. Professional design model of modular trailer for customers' special requirements.

2. Strict Quality Control for the modular trailer.

3. Longer guarantee terms for the modular trailer in whole Chinese market.

FAQ

1. Can i have samples of this type of trailer to test the quality?

Yes, you can buy any samples to test the quality,our MOQ is 1 set.

2. What's the delivery time and can you lower the price?

It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.

3. Can i customize the painting and the trailer design?

Yes, we offer customized design and logo for reasonable type.

4. What's the payment method?

TT 30% as Deposit, Balance Before shipment by TT or L/C at sight

Hydraulic Steering Axle Trailer for Transporting Overweight and Heavy Cargo Loads 6
