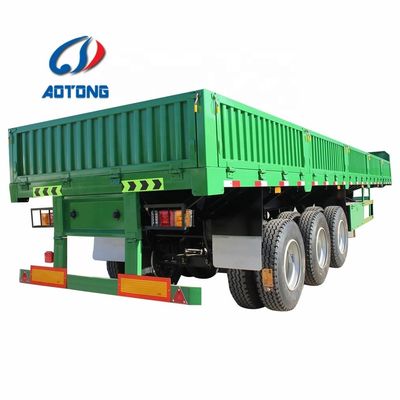

Suspension Mechanical Suspension 13000mm Length Curtain Side Wall Cargo Semi Trailer

MOQ: 1 UNIT
Price: $14,800.00/pieces 1-4 pieces
Standard Packaging: Exporting Standard
Delivery Period: 25 days
Payment Method: TT
Supply Capacity: 200 Piece/Pieces per Month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
AOTONG
Certification
ISO,CCC
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel
Size:
13000*2500*600
Max Payload:
50T
Type:
Lowbed Trailer
Product Name:
3-axle Semi-trailer
Landing Gear:
Standard 28Ton
Axle Brand:
13TON Axle FUWA Brand
King Pin:
2"(50mm)or3.5"(90mm) JOST
Brake System:
Dual Line Braking System
Main Beam:
Hight:500mm
Suspension:
Mechanical Suspension
Tire:
12R22.5
Loading Capacity:
25T~80T
Port:
Qingdao/Tianjin
Product Description
Product Description
Suspension Mechanical Suspension 13000mm Length Curtain Side Wall Cargo Semi Trailer 0
Product Specifications
Total Weight
38000 kg
Rated Load
30000 kg
Tare Weight
8000 kg
Wheel Base
7180+1310+1310 (mm)
Tyre Specifications
11.00-20 12PR（Vacuum tyre or rail tyre)
No. Of the Tyres
12
Axle Brand
FUWA (BPW optional)
No. Of the Axles
3
Axle-load
23500 kg
Pieces of leaf-spring
10
Suspension
Independent stamping steel rigid suspension ( air suspension)
Departure Angle
14.5
Front/Rear Overhang
2100 mm
Outside Dimensions (LxWxH)
13000X2500X2990 (mm)
Interior Dimensions (LxWxH)
12820X2350X600 (mm)
Material of the Main Beam
Q235B manganese plates, automatic submerged arc welded
Brake System
ABS (optional )
Brake Air Chamber
Four double and two single chamber
Usage
Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo.



Other Descriptions
The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes.
The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates
together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc
welding.
Frame using peen-forming processing.
Suspension Mechanical Suspension 13000mm Length Curtain Side Wall Cargo Semi Trailer 1
Details Images
Suspension Mechanical Suspension 13000mm Length Curtain Side Wall Cargo Semi Trailer 2
Product packaging
Suspension Mechanical Suspension 13000mm Length Curtain Side Wall Cargo Semi Trailer 3
Suspension Mechanical Suspension 13000mm Length Curtain Side Wall Cargo Semi Trailer 4
Suspension Mechanical Suspension 13000mm Length Curtain Side Wall Cargo Semi Trailer 5
Suspension Mechanical Suspension 13000mm Length Curtain Side Wall Cargo Semi Trailer 6
Customer Photos
Suspension Mechanical Suspension 13000mm Length Curtain Side Wall Cargo Semi Trailer 7
Suspension Mechanical Suspension 13000mm Length Curtain Side Wall Cargo Semi Trailer 8
Certifications
Suspension Mechanical Suspension 13000mm Length Curtain Side Wall Cargo Semi Trailer 9
Manufacturing Technique
Suspension Mechanical Suspension 13000mm Length Curtain Side Wall Cargo Semi Trailer 10
Company Profile
Suspension Mechanical Suspension 13000mm Length Curtain Side Wall Cargo Semi Trailer 11
FAQ
1. How do you transport the semi trailers
We will transport the trailers by rolling ship or container,we have possess long-term cooperation with ship agency who can provide
you lowest shipping fee.
2. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension,tire are purchased centralized by ourselves,every part will be inspected
strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the
welding quality.
3.Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
4. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large
quantities, then ,of course, the price can be lower.
5. Can I customize the painting and the logo?
Yes, we offer customized logo for any type.
