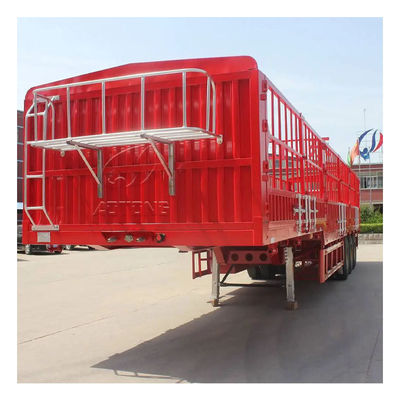

Semi-Trailer Aotong 11800mm Livestock Fence Trailer for Livestock Transportation

Products

Farm Trailer & Other Full Trailer

Semi-Trailer Aotong 11800mm Livestock Fence Trailer for Livestock Transportation

MOQ:	1 UNIT
Price:	$12,100.00/sets 1-2 sets
Standard Packaging:	Bulk package
Delivery Period:	25 days
Payment Method:	TT
Supply Capacity:	5000 Set/Sets per Year

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

AOTONG

Certification

ISO,CCC

Use:

Truck Trailer

Type:

Semi-Trailer

Material:

Steel

Size:

11900X3000

Max Payload:

19200kgs

Rated Load:

10000 Kg

Wheel Base:

8480+1310 (mm)

Tyre Specifications:

8.25R20 12PR(Vacuum Tyre Or Rail Tyre)

No. Of The Tyres:

Axle Brand:

FUWA (BPW Optional)

Suspension:

Mechanical Suspension

Landing Gear:

Standard 28Ton

Axle:

13 Ton Fuwa Brand

Brake System:

WABCO

Tire:

12R22.5

Product Description

Company Information

Semi-Trailer Aotong 11800mm Livestock Fence Trailer for Livestock Transportation 0

Product Description

1-It has flat type, concave beams type and tyre appear type.The front longitudinal adopts flat type or goose neck type. Its chassis is ladder type,longitudinal beam section is H-shaped. It has good rigidity and high strength.

2-Low platform is chassis makes a stable transportation. It is suitable for transport different kinds of engineering equipment,large equipment and steel structures.

3-Using three axle balanced type, two axles balanced type or rigid axle suspension.Putting the balanced between the front and rear plate spring and make the same change of the front and rear spring comber and the same load condition

Total Weight	40000 kg
Rated Load	30000 kg
Tare Weight	10000 kg
Wheel Base	11880+1220, 11380+1220 (mm)
Tyre Specifications	8.25R20 12PR(Vacuum tyre or rail tyre)
No. Of the Tyres	16
Axle Brand	FUWA (BPW optional)
No. Of the Axles	2 lines with 4 axles
Axle-load	24000 kg
Suspension	rigid suspension
Departure Angle	19
Front/Rear Overhang	1250 mm
Outside Dimensions (LxWxH)	15000,14500X3000, 2800X1710 (mm)
Material of the Main Beam	Q235B manganese plates, automatic submerged arc welded
Brake System	ABS (optional )
Brake Air Chamber	Four double and two single chamber
Usage	Is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment or machine, and all sorts of steel products.
Other Specifications	The cargo's carrying platform is 910mm high from the ground. The height of rear guard settings is 420mm from the ground.
Other Descriptions	The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding. Frame using peen-forming processing.

Semi-Trailer Aotong 11800mm Livestock Fence Trailer for Livestock Transportation 1

Packaging & Shipping

Semi-Trailer Aotong 11800mm Livestock Fence Trailer for Livestock Transportation 3

Customer Visit

Semi-Trailer Aotong 11800mm Livestock Fence Trailer for Livestock Transportation 5

Related Trailers

Semi-Trailer Aotong 11800mm Livestock Fence Trailer for Livestock Transportation 6

After-Sales Service

Semi-Trailer Aotong 11800mm Livestock Fence Trailer for Livestock Transportation 8

FAQ

1. How do you transport the semi trailers

We will transport the trailers by rolling ship or container,we have possess long-term cooperation with ship agency who can provide you lowest shipping fee.

2. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension,tire are purchased centralized by ourselves,every part will be inspected strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.

3.Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.

4. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lower.

5. Can I customize the painting and the logo?
Yes, we offer customized logo for any type.

Our Services

1. Over 20 years professional manufacturer experiences

2. Be designed according to your requirements

3. CCC ISO9001 SGS agreement

4. Small order can be accepted

5. 1 year quality guarantee term

6. We accept 100% inspection, welcome to our factory at any time

For more details,please contact:

Website: http://www.juyuanguoji.en.alibaba.com

Welcome to our factory,we will pick you up at airport.
