Mechanical Suspension 3 Axles Heavy Duty Rear Tipping Semi-Trailers Dumper Truck Trailer
  • name
  • name
  • name
  • name
  • name
  • name

Mechanical Suspension 3 Axles Heavy Duty Rear Tipping Semi-Trailers Dumper Truck Trailer

MOQ: 1 UNIT
Price: $19,000.00/pieces >=1 pieces
Standard Packaging: Exporting Standard
Delivery Period: 25 days
Payment Method: TT
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
AOTONG
Certification
ISO,CCC
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel
Size:
9000*2500*1600 (mm)
Max Payload:
50000KG
Cylinders:
HYVA
Axles:
FUWA BPW Etc
Tire:
12R22.5
Rim:
9.00-22.5
Suspension:
Mechanical Suspension
Kin Pin:
2''/3.5'' Bolt Type
Landing Gear:
28 Ton Two Speed
Brake System:
Dual Line Braking System
Color:
Customers Optional
Product Description
Product Description
Mechanical Suspension 3 Axles Heavy Duty Rear Tipping Semi-Trailers Dumper Truck Trailer 0
Mechanical Suspension 3 Axles Heavy Duty Rear Tipping Semi-Trailers Dumper Truck Trailer 1
Mechanical Suspension 3 Axles Heavy Duty Rear Tipping Semi-Trailers Dumper Truck Trailer 2
Mechanical Suspension 3 Axles Heavy Duty Rear Tipping Semi-Trailers Dumper Truck Trailer 3

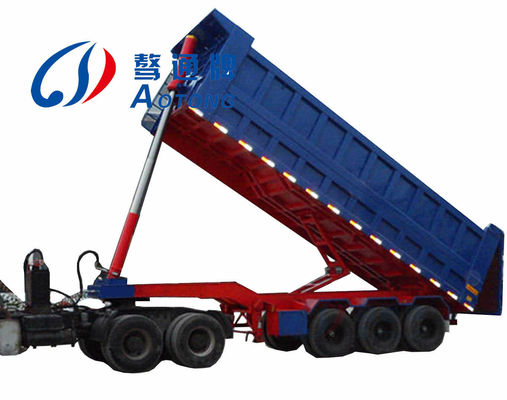

DUMP TRUCK SEMI TRAILER:
1.perfectly equipped to handle your sand, gravels, clinkers and small aggregate needs, and tipping easily
2.equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front
3.available in many configurations, type and dimensions
Specification
Size
9000*2500*1600 (mm)
OE NO.
LAT9280Z
Max Payload
50000KG
Place of Origin
China
Province
Shandong
Brand Name
AoTong
Side wall
6mm
Floor
8mm
Cylinders
HYVA
Axles
3 * 13ton capacity
Suspension
Mechanical suspension
Leaf spring
10pcs
Tire
12R22.5
Rim
9.00-22.5
Kin pin
2''/3.5'' bolt type
Landing gear
28 Ton two speed
Mechanical Suspension 3 Axles Heavy Duty Rear Tipping Semi-Trailers Dumper Truck Trailer 4
Mechanical Suspension 3 Axles Heavy Duty Rear Tipping Semi-Trailers Dumper Truck Trailer 5
Packing & Delivery
Mechanical Suspension 3 Axles Heavy Duty Rear Tipping Semi-Trailers Dumper Truck Trailer 6
Company Profile
Mechanical Suspension 3 Axles Heavy Duty Rear Tipping Semi-Trailers Dumper Truck Trailer 7
Shandong Juyuan Automobile Technology Co., Ltd., is a professional manufacturer of varies types of semi trailers established in 1992 with almost 30 years experience and well-equipped testing facilities and strong technical force.

With advanced and proven technique in design, exploitation and production, our products with the brand "Aotong" are widely sold to countries all over the world with good reputation, enjoying high popularity in America, the Middle East, Africa, Southeast Asia and Russia, specially get good feedback from Kenya, Tunisia, Saudi Arabia, the Philippines, Myanmar, Vietnam, Thailand, Bangladesh, Tanzania, mozambique, Congo, Nigeria, Russia, etc. .

Now we provide more than 60 types of trailers and also our trailers can be customized according to your specifications and design drawings. You are warm welcome to contact us and we are ready for you!!!
Other Products and Certifications
Mechanical Suspension 3 Axles Heavy Duty Rear Tipping Semi-Trailers Dumper Truck Trailer 8
Different Kinds Of Semi Trailer.
We have lowbed semi trailers, container flatbed and skeleton semi trailers, fence semi trailers, animal transport semi
trailers,car vehicle carrier semi trailers, van semi trailers, tanker semi trailers, dump truck semi trailers, modular semi
trailers and full trailer series, etc.
Mechanical Suspension 3 Axles Heavy Duty Rear Tipping Semi-Trailers Dumper Truck Trailer 9
FAQ
1. How do you make the shipment?
We will transport the trailers by bulk or cotainer,we have possess longterm cooperation with ship agency who can provide you lowest shipping fee.

2. Can you satisfy my special requirement?
Sure! We are direct manufacturer with 30 years experience and we have strong producing capacity and R&D capacity.

 3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension,tyre are purchased centralized by ourselves,every part will be inspected strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.

 4. Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
Why Choose Us
Top Manufacturers for good quality semi trailers.
1.Almost 30 years manufacturing experiences provide qualified truck trailers & competitive price.
2.Experienced Design & QC team, strict quality control.CCC,ISO,SGS,BV agree
3.Customized a variety of semi trailer required by customers. Well designed ,small order accept.
4.Manufacture according to your detailed requirements
5.After-sale-support,6 month guarantee term
