Suspension Mechanical Suspension Juyuan Trailer 80Ton Side Dump Truck Semi Trailer

Products

Farm Trailer & Other Full Trailer

Suspension Mechanical Suspension Juyuan Trailer 80Ton Side Dump Truck Semi Trailer

MOQ:	1 UNIT
Price:	$16,900.00/sets 1-4 sets
Standard Packaging:	Exporting Standard
Delivery Period:	25 days
Payment Method:	TT
Supply Capacity:	200 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

AOTONG

Certification

ISO,CCC

Use:

Truck Trailer

Type:

Semi-Trailer

Material:

Steel

Size:

12500*2500*1550mm

Max Payload:

50ton

Manufacture:

Liangshan Juyuan Special Vehicle Manufacturing Co., Ltd

Axle:

FUWA/ BPW Brand

Tire:

Triangle Brand

Suspension:

Mechanical Suspension

Brake System:

WABCO Valve

Landing Gear:

JOST Brand Two-speed

King Pin:

2"(50mm)or3.5"(90mm) JOST

Loading Capacity:

30-60 Tons

OE NO.:

Juyuan Trailer

Port:

Tianjin/ Lianyungang/Qingdao/Shanghai Port

Product Description

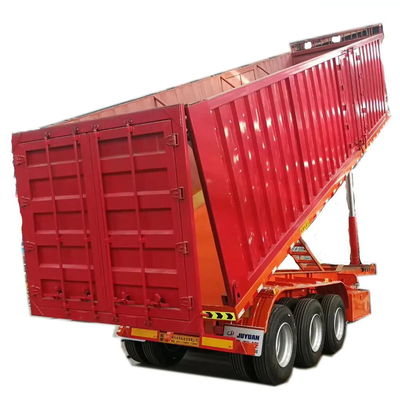

2017 brand new hydraulic self discharge sand 3 Axles 80Ton Side dump truck semi trailer / rear tipper trailer for sale

Product Description

1. Product Name: dump semi trailer

2. Outside Dimension: 112800×2495×3970mm

3. payload: 45CBM/50000KG

4. material: Q235 and Q345

4. Axle: FUWA brand 13ton

5. tyre: 825R20, 9.00R20, 10.00R20,11.00R20 also can accroding to your request.

more detailed Suspension Mechanical Suspension Juyuan Trailer 80Ton Side Dump Truck Semi Trailer 0

vehicle name	2 axle gooseneck dumping semi-trailer
overall dimension(mm) (LxWxH)	112800×2495×3970
box dimension(mm) (LxWxH)	10500×2300×1500
Weight
Tare Weight	8.5T-10T
Payload	50T-70T(25 m³—37m³)
Specification
Axle Weight Load	13T/14T/16T/20T per axle
Axle number	2
Axle specs	FUWA,JINSHENG/BPW brand
Suspension	mechanical suspensions
King Pin	50#/90# traction pin
Lifting system	Full set of Hyva hydraulic system/ Full set of Jiuzhouzhongli hydraulic system
Steel Spring	10pieces
Landing Gear	28 ton capacity
Tire
Tire specs.	11.00R20-18
Number of Tire	8pieces
Spare Tire Carriers	2 pieces
Rim	8.00*22.5 , 8 pieces
Frame (specs. and materials)	Main frame is height 500mm
Frame Beam	Upper and lower plate is20mm, middle is10mm(Double+three plate). height is 500 mm
Frame Floor	The Thickness is 3mm flat bed
Brake
Brake System	Dual line braking system
Brake Chamber	Two double chamber/ABS
Brake valve	WABCO
Electrical System	1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Lamp	LED
Color	Any color will be available
Accessory	One tooling box with a set of standard trailer tool

This is our standard specification of 2 axle dump semi trailer.We can design as your actual demands.

Product display

China manufacture hydraulic cylinder double axles rear or side dump trailer for sand transportation

Suspension Mechanical Suspension Juyuan Trailer 80Ton Side Dump Truck Semi Trailer 1

we can designed trailer model according to your requirement
