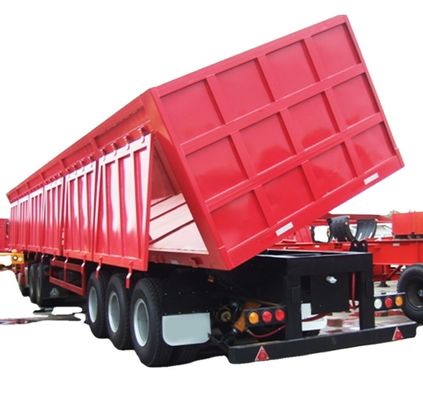

Steel 3 Axles 30ton Hydraulic Cylinder Dump Trailer Tripping Truck Cargo Semi Trailer
  • name
  • name
  • name
  • name
  • name
  • name

Steel 3 Axles 30ton Hydraulic Cylinder Dump Trailer Tripping Truck Cargo Semi Trailer

MOQ: 1 UNIT
Price: $19,000.00/units >=1 units
Standard Packaging: Exporting Standard
Delivery Period: 25 days
Payment Method: TT
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
AOTONG
Certification
ISO,CCC
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel
Size:
9000*2490*3460(mm)
Max Payload:
50T Or Other
Axle:
FUWA, BPW Optional
Tire:
11.00r20 12r22.5 315 385
Suspension:
Mechanical Suspension
Landing Gear:
Standard 28Ton
King Pin:
2"(50mm)or3.5"(90mm)
Brake System:
Dual Line Braking System
Electric System:
24V 7 Ways
Cylinder:
HYVA
Color:
Customers Optional
Condition:
Brand-new
Product Description

Steel 3 Axles 30ton Hydraulic Cylinder Dump Trailer Tripping Truck Cargo Semi Trailer 0

China High Quality 3 Axles 30ton Hydraulic Cylinder Dump Trailer Tripping Truck Cargo Semi Trailer



1. Model:  tipper semi-trailer

2.12 months guarantee system
3.High quality and service
4.Practical and Economical
5.CCC ISO certification
6. Small order can be accepted.

7.more than 30 years experience manufacturer



vehicle name tipper semi-trailer
overall dimension(mm) (LxWxH) 9000×2490×3460
box dimension(mm) (LxWxH) 8200×2320×1300
Weight
Tare Weight 8.5T-10T
Payload 30T-60T(25 m³_30m³)
Specification
Axle Weight Load 13T/14T/16T/20T per axle
Axle number 2
Axle specs FUWA,JINSHENG/BPW brand
Suspension mechanical suspensions
King Pin 50#/90# traction pin
Lifting system Full set of Hyva hydraulic system/ Full set of Jiuzhouzhongli hydraulic system
Steel Spring 10pieces
Landing Gear 28 ton capacity
Tire
Tire specs. 11.00R20-18
Number of Tire 8pieces
Spare Tire Carriers 1 pieces
Rim 8.00*22.5 , 8 pieces
Frame (specs. and materials) Main frame is height 500mm
Frame Beam Upper and lower plate is20mm, middle is10mm(Double+three plate). height is 500 mm
Frame Floor The Thickness is 3mm flat bed
Brake
Brake System Dual line braking system
BrakeChamber Two double chamber/ABS
Brake valve WABCO
Electrical System 1.Voltage: 24v  2. Receptacle: 7 ways (7 wire harness)
Lamp LED
Color Any color will be available
Accessory One tooling box with a set of standard trailer tool



 Steel 3 Axles 30ton Hydraulic Cylinder Dump Trailer Tripping Truck Cargo Semi Trailer 1

 Steel 3 Axles 30ton Hydraulic Cylinder Dump Trailer Tripping Truck Cargo Semi Trailer 2Steel 3 Axles 30ton Hydraulic Cylinder Dump Trailer Tripping Truck Cargo Semi Trailer 3





 Steel 3 Axles 30ton Hydraulic Cylinder Dump Trailer Tripping Truck Cargo Semi Trailer 4

Steel 3 Axles 30ton Hydraulic Cylinder Dump Trailer Tripping Truck Cargo Semi Trailer 5



According to client's speical requests for trailer, we can design full set drawings for clients.


(1) .The material of trailer frames is high quality and strength steel that can extend the using life of trailer.
(2). It has been designed appropriately according with clients requirements, such as dimension, payload, main beam and so on.
(3). Brake system and Electric system are well-known brand in the world.
(4). Shot blasting twice and particular coat painting can guarantee the quality of trailer surface.
(5). All componenet/configuration (OEM parts) can be arranged based on clients detailed requirements and meet clients need.







Steel 3 Axles 30ton Hydraulic Cylinder Dump Trailer Tripping Truck Cargo Semi Trailer 6

Steel 3 Axles 30ton Hydraulic Cylinder Dump Trailer Tripping Truck Cargo Semi Trailer 7
