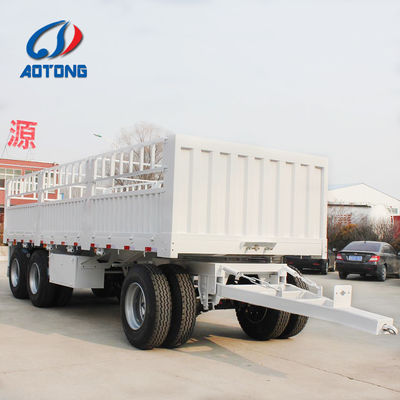

Full Trailer with 7000-12000*2500*2550mm Dimension and Steel Leaf Spring Suspension
  • name
  • name
  • name
  • name
  • name
  • name

Full Trailer with 7000-12000*2500*2550mm Dimension and Steel Leaf Spring Suspension

MOQ: 1 UNIT
Price: $10,600.00/sets 2-9 sets
Delivery Period: 25 days
Payment Method: TT
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
AOTONG
Certification
ISO,CCC
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel
Size:
(7000-12000)*2500*2550mm
Max Payload:
40T
Product Name:
Full Trailer
Tire:
Triangle Brand
Axle:
2 Axles
Color:
Customer's Request
Tire Specification:
12R22.5/11.00R20
Axle Brand:
13Tons FUWA
Suspension:
Steel Leaf Spring Suspension
Brake System:
Dual Line Braking System
Tare Weight:
4650kgs
Product Description

The direct factory for all kinds of good quality semi trailers.

1.15 years experience manufactory

2.CCC,ISO,SGS,BV agree
3.Well designed ,small order accept.
4.Manufacture according to your detail requirements
5.After-sale-support;6 month guarantee term





1-trailer series

   Customized according to customer requirements.

Full Trailer with 7000-12000*2500*2550mm Dimension and Steel Leaf Spring Suspension 0

Full Trailer with 7000-12000*2500*2550mm Dimension and Steel Leaf Spring Suspension 1

Full Trailer with 7000-12000*2500*2550mm Dimension and Steel Leaf Spring Suspension 2Full Trailer with 7000-12000*2500*2550mm Dimension and Steel Leaf Spring Suspension 3





Product Information

Rated Load

25000 kg

Tare Weight

5000 kg

Brakes

brand

TKL brand

Brake chamber

double chamber

System

Dual line braking system /ABS

Main Beam

material

I beam ,mild alloy(16Mn) , automatic submerged arc welded

specification

Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm

Cross Beam material

Mild Alloy Q235B

Side beam

16# channel steel

Plateform

3mm diamond steel plate

Landing gear

Single side operation or double side operation, Static capacity 28Ton

Appendix

1 or 2 tool box, length 1.0m

Voltage

24V

Receptacle

7 ways (7 wire harness)

Lights

Front corner marker lamp :red ;reflector lamp :white

Side marker :orange

Rear lamp :red; rear reflector :white; turn single lamp :orange

Other

 Painting ,marking and side guard can according to the customer’s requirement
Packaging & Shipping

 Full Trailer with 7000-12000*2500*2550mm Dimension and Steel Leaf Spring Suspension 4

Company Information

   FACTORY & PRODUCTS

Qingdao Juyuan International Trading Co., Ltd. is an industry & trade company, withthe factory, Shandong JuyuanAutomobile Technology Co., Ltd.
Having been in the field of trailer manufacture since 2001, we are one of the companies which first gained Compulsory Product Certificate (CCC Certificate) from the Ministry of Technology and Information of P. R. C, and ISO9001 ,SGS, BV certificate.

Full Trailer with 7000-12000*2500*2550mm Dimension and Steel Leaf Spring Suspension 5

  MAIN PRODUCTS

Full Trailer with 7000-12000*2500*2550mm Dimension and Steel Leaf Spring Suspension 6

For more details,please contact:



Website: http://www.juyuanguoji.en.alibaba.com





 Welcome to our factory,we will pick you up at airport.
