Heavy Duty Self Loading Concrete Mixer Truck 4-15 Cubic Capacity

Products

Farm Trailer & Other Full Trailer

Heavy Duty Self Loading Concrete Mixer Truck 4-15 Cubic Capacity

Price:	$98,000.00/units 1-2 units
Standard Packaging:	In nude,Polish with water wax before shipment 1 By 40ft/45ft/40fr container 2 By bulk /roro ship 3 As your requirments. Professional package saves freight cost for customers Guarantee the firmness and safety of the goods
Supply Capacity:	3000 Unit/Units per Year

Detail Information

Product Description

Detail Information

Place of Origin

Shandong, China

Applicable Industries:

Building Material Shops

Showroom Location:

None

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

1 Year

Core Components:

Engine

Condition:

New

Weight:

16500 Kg

Dimension(L*W*H):

9250*2496*3935mm

Power:

247kw

Warranty:

1 Year

UNIQUE SELLING POINT:

High Load Moment

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Color:

White

Chassis Brand:

SINO TRUCK

Name:

8-10m3 Concrete Mixer Truck

Engine:

WD615.69

Tires:

12.00R20

Type:

6*4

Product Name:

Cement Mixer Truck

After Warranty Service:

Online Support

Highlight:

Heavy self loading concrete mixer truck

4cm3 self loading concrete mixer truck

15cm3 self loading concrete mixer truck

Product Description

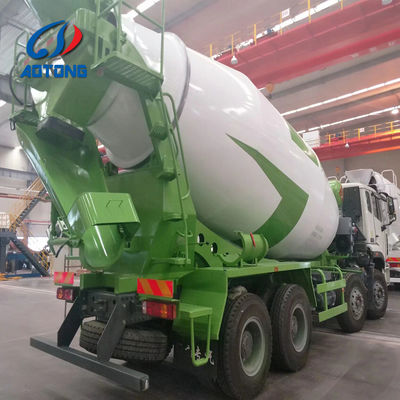

4-15m3 Concrete Mixer Truck/Cement Mixer Truck for sales

Concrete mixer truck (also called Transit mixer , concrete transport truck , construction vehicle , mixer truck , cement mixer , cement mixer truck , concrete mixer truck , volumetric mixer truck , Agitator truck . ) is made to transport and mix concrete up to the construction sit . The concrete mixing transport truck maintains the material's liquid state through agitation or turning of the drum until delivery .

For the construction place which has limited height and width requirement for the vehicle , Small concrete mixer trucks (2 m³to 14m³) that are perfect for the demands .

Technial Date

General	Overall Dimension	980025004000mm
General	GVW/Kerb Weight	25000kgs / 14000 kgs
Cab	Cab capacity	3 persons allowed
Cab	Air Conditioner	W/ air Conditioner
Engine	Fuel Type	Diesel,Gasoline,Natural Gas
	Power	350 HP (257KW)
	Displacement	9839 ML
	Emission Standard	Euro I Euro II Euro III Euro IIII
Chassis	Drive type	6*4 Left hand drive or right hand drive
	Transmission	9 speed front , 1 reverse
	Wheelbase/NO. of axle	4000+1350 mm / 3
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Mixing Capacity	10 m³-12 m³
	Drum Maeterial	Alloy steel
	Hydraulic Motor	Imported brand
	Hydraulic Pump	Imported brand
	Radiator	High class Chinese Brand
	Rest Rate	≤0.5 %
	Water Supply System	Air Pressure
	Water Tank Volume	400L
	All other standard accessories:Manhole , Ladder , inlet , Discharge ......
Optional	Hydraulic system brand could be PMP , ZF , Eaton , Rexroth , Ect . Or other opointed brand .

Heavy Duty Self Loading Concrete Mixer Truck 4-15 Cubic Capacity 0

Heavy Duty Self Loading Concrete Mixer Truck 4-15 Cubic Capacity 2

Factory strength:

Production Machinery:

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used	Condition
CNC Flame Plasma Cutting Machine	GS	2	4.0	Acceptable
Press Machine	JC21-160	4	4.0	Acceptable
Hydraulic Plate Bender	WC67Y-200/4000	2	3.0	Acceptable
Hydraulic Pendulum Plate Shears	QC12Y-12*3200	2	3.0	Acceptable
Drilling Machine with Jointed Arm	ZN3050*16	4	4.0	Acceptable
Shaping Machine	BS6065	2	4.0	Acceptable
Universal Rotary Milling Machine	X6232	1	4.0	Acceptable
CNC Lathe	EL6140N	2	4.0	Acceptable
Saw Machine	GD4028N	2	5.0	Acceptable
Expander	ZX-3000	1	3.0	Acceptable
Rolling Machine	W11-4-200	2	3.0	Acceptable
Automatic Round Welding Machine	W11SNC-10-6500	1	4.0	Acceptable

Testing Machinery:

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used	Condition
Vernier Caliper	0.02 mm	2	3.0	Acceptable
Ultrasonic Thickness Gauge	SMART SENSOR	1	3.0	Acceptable
Sound Level Meter	AZ8928	1	3.0	Acceptable
