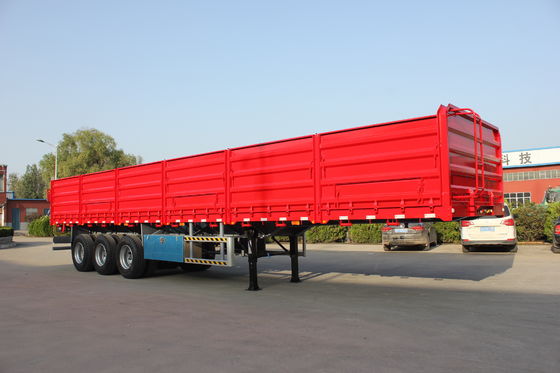

Cargo Carrier Flatbed Semi Trailer With Sidewall 40ft Length Detachable Side Wall

Products

Farm Trailer & Other Full Trailer

Cargo Carrier Flatbed Semi Trailer With Sidewall 40ft Length Detachable Side Wall

Delivery Period:	28 days
Payment Method:	T/T

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

AOTONG

Certification

ISO CCC

Axle:

FUWA, BPW, Etc

Suspension:

Air/Mechanical Suspension

Tire:

315/80R22.5

Usage:

Cargo Transport

Landing Gear:

28Ton

Highlight:

Cargo side wall semi trailer

40ft side wall semi trailer

Detachable side wall semi trailer

Product Description

Usage:

Ideal for transporting medium to heavy-duty bulk cargo over mid to long distances.

Features:

The entire structure is constructed from high-quality steel and manufactured using advanced techniques and stringent production management processes.

The frame features a wear-resistant design, with webs made from manganese plates ranging from 400mm to 550mm in height, welded to the upper and lower flange plates. The continuous beam runs through the longitudinal beam, creating a robust unit through automatic submerged arc welding.

Specifications:

Size	1250025001500 (mm)
Side board height	800-1500mm optional
Payload	50000KG
Main beam	Heavy duty I beam.
Cross beam	160mm
Plate	checked plate or flat plate
Axles	3 * 13ton capacity (Brand optional)
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	10pcs
Tire	12R22.5 12pcs (Other size optional)
Rim	9.00-22.5 12pcs (Other size optional)
Kin pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Twist locks	optional
Braking system	Double air chamber ,brake valve,40L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting

According to client's speical requests for trailer, we can design full set drawings for clients.

(1) .The material of trailer frames is high quality and strength steel that can extend the using life of trailer.
(2). It has been designed appropriately according with clients requirements, such as dimension, payload, main beam and so on.
(3). Brake system and Electric system are well-known brand in the world.
(4). Shot blasting twice and particular coat painting can guarantee the quality of trailer surface.
(5). All componenet/configuration (OEM parts) can be arranged based on clients detailed requirements and meet clients need.

Cargo Carrier Flatbed Semi Trailer With Sidewall 40ft Length Detachable Side Wall 0

Cargo Carrier Flatbed Semi Trailer With Sidewall 40ft Length Detachable Side Wall 1

Cargo Carrier Flatbed Semi Trailer With Sidewall 40ft Length Detachable Side Wall 2

Cargo Carrier Flatbed Semi Trailer With Sidewall 40ft Length Detachable Side Wall 3
