Shipping 20ft 40ft 45ft Container Chassis Semi Trailer Extendable Skeleton Truck Trailers

Shipping 20ft 40ft 45ft Container Chassis Semi Trailer Extendable Skeleton Truck Trailers

MOQ: 1 unit
Delivery Period: 25 days
Payment Method: T/T
Detail Information
Place of Origin
CHINA
Brand Name
AOTONG
Certification
ISO CCC
Hs Code:
871639
Type:
Semi-Trailer
Material:
Steel
Payload:
40-100 Tons
Spare Tire Carrier:
2 Pieces
Kingpin:
2" Or 3.5" Interchangeable
Highlight:

Extendable Skeleton Truck Trailers

,

40ft Skeleton Truck Trailers

,

45ft Skeleton Truck Trailers

Product Description

Suitable for sale to the transportations for ships, ports, airlines, roads, transfer stations, bridges, tunnels, and other multimodal transport matching logistical systems.


Specifications

Parameter

Outside Dimensions (L*W*H)

(6000-17000)*2500*1550mm

Rated Load

45000 kg

Tare Weight

7000 kg

Wheel   Base

8390+1310+1310 (mm)

Twist lock No

12

Running Gear

Tires

specification

12R22.5-18

No. of tires

8/12/16

Spare tire carriers

1 or 2

Axles



Brand

FUWA (BPW optional)

No. of axles:

2/3/4

Axle-load

13000kg

Wheel rim

7.50-20 rim or 8.00

Suspension

rigid suspension,10 pcs leaf-spring

Brakes

brand

TKL brand

Brake chamber

double air chamber

System

Dual line braking system /ABS

Under Frame

Departure Angle

16

Front/Rear   Overhang

1890mm

Main Beam

material

I beam ,Q345B, automatic submerged arc welded

specification

Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm

Cross Beam material

Q235B

Side beam

Channel steel

Plate form

Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm)

King Pin

50# or 90#

Landing gear

28Ton

Accessory

One tooling box with a set of standard trailer tool

Electrical

Voltage

24V

Receptacle

7 ways (7 wire harness)

Lights

Front corner marker lamp :red ;reflector lamp :white

Side marker :orange

Rear lamp :red; rear reflector :white; turn single lamp :orange

Painting ,marking and side guard can according to the customer’s requirement

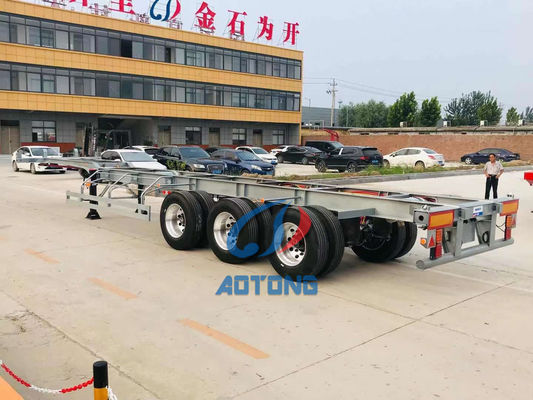

Shipping 20ft 40ft 45ft Container Chassis Semi Trailer Extendable Skeleton Truck Trailers 0


Shipping 20ft 40ft 45ft Container Chassis Semi Trailer Extendable Skeleton Truck Trailers 1

Shipping 20ft 40ft 45ft Container Chassis Semi Trailer Extendable Skeleton Truck Trailers 2




Shipping 20ft 40ft 45ft Container Chassis Semi Trailer Extendable Skeleton Truck Trailers 3

Shipping 20ft 40ft 45ft Container Chassis Semi Trailer Extendable Skeleton Truck Trailers 4
