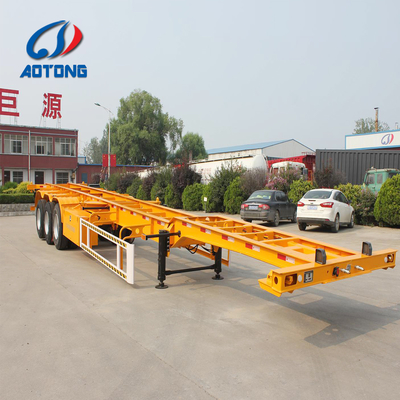

3-Axle Skeleton Semi Trailer for Container Transport 25-50T Payload

Products

Farm Trailer & Other Full Trailer

3-Axle Skeleton Semi Trailer for Container Transport 25-50T Payload

MOQ:	1 UNIT
Standard Packaging:	Export standard
Delivery Period:	25 days
Payment Method:	T/T

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

AOTONG

Certification

ISO,CCC

Suspension:

Mechanical Or Air Suspension

Tyre Specifications:

12R22.5

Main Beam:

Heavy Duty I Beam.

Kin Pin:

2’’/3.5’’ Bolt Type

Braking System:

Double Air Chamber ,brake Valve,45L Air Tanks ;ABS Optional

Electrical:

LED Light , 7 Ways ,24V

Painting:

Blasting And Clean Rust,1 Coat Of Prime Painting ,2 Coat Of Finish Painting

Highlight:

3-axle skeleton semi trailer

container transport semi trailer

heavy-duty semi trailer 50T

Product Description

Size	12500mm2500mm1500mm(20ft 40ft 45ft optional)
Payload	25-50T
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm
Side beam	No
Cross member	10# channel steel(Optional)
Floor	No
Axle	3 axle FUWA brand 13T (Optional)
Suspension	Mechanical suspension American type (Optional)
Leaf spring	Leaf spring 10pcs9013mm (Optional)
Tire	12R22.5 12pcs (Brand and specs optional)
Wheel rim	9.0-22.5 12pcs (Brand and specs optional)
Kingpin	2”/3.5” bolt-in /welded king pin
Landing gear	Two-speed, manual operating ,heavy duty landing gear 28T
Twist lock	12pcs
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Lights	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint

The skeleton semi-trailer is a special semi-trailer used to transport containers, and its body structure is simple, mainly composed of a solid frame, which is used to support and fix the container.Customers have the
flexibility to customize the number of locks according to their specific requirements, making it a versatile option

With over three decades of experience in the industry, all the accessories of this 40ft 3-axle skeleton trailer are made from reputed, reliable and trustworthy suppliers, ensuring long-term reuse with superior strength and durability.

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.

Tags:

shipping container semi trailer,

semi container trailer,

Video

3 Axle 40FT Container Skeleton Semi Trailer with Mechanical or Air Suspension
