Product name	Skeleton semi-trailer
Size	9700mm2550mm1850mm(Size optional)
Loading capacity	30T-100T (load capacity optional)
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 18mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm
Floor	8mm checkered plate
Side wall	Height 1600mm thickness 6mm
Axle	Fengbao, FUWA, BPW (Axle brand can be selected, and the number of axles can be 3 or 4)
Suspension	Mechanical suspension
Leaf spring	Leaf spring 10pcs9013mm
Tire	12R22.5 12pcs
Wheel rim	9.0-22.5 12pcs
Kingpin	2”/3.5” bolt-in /welded king pin
Landing gear	Two-speed, manual operating ,heavy duty landing gear 28T
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.

Tags:

shipping container semi trailer,

semi container trailer,

Video

3 Axle 40FT Container Skeleton Semi Trailer with Mechanical or Air Suspension

Contact Now

PRODUCTS DETAILS

Products

Lowbed Semi Trailer

Container Semi Trailer

Side Wall Semi Trailer

Car Carrier Semi Trailer

Dump/Tipping Semi Trailer

Van&Curtain Side Semi Trailer

Fence Semi Trailer

Animal Transport Semi Trailer

Tanker Semi Trailer

Farm Trailer & Other Full Trailer

HOWO Dump Truck

Tractor Head

Special Trailer

Trailer Spare Parts

New Energy Vehicles

Special Vehicles

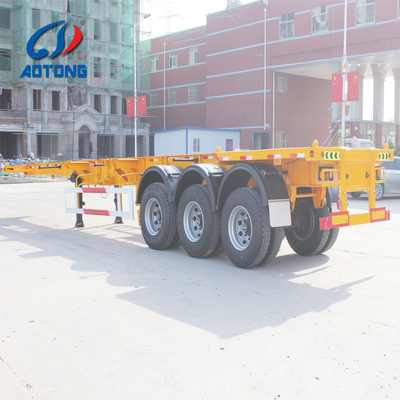

2-3 Axle Skeleton Semi Trailer for 20ft 40ft Containers

MOQ:	1 UNIT
Standard Packaging:	Export standard
Delivery Period:	25 days
Payment Method:	T/T

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

AOTONG

Certification

ISO,CCC

Suspension:

Mechanical Or Air Suspension

Tyre Specifications:

12R22.5

Main Beam:

Heavy Duty I Beam.

Kin Pin:

2’’/3.5’’ Bolt Type

Braking System:

Double Air Chamber ,brake Valve,45L Air Tanks ;ABS Optional

Electrical:

LED Light , 7 Ways ,24V

Painting:

Blasting And Clean Rust,1 Coat Of Prime Painting ,2 Coat Of Finish Painting

Minimum Order Quantity:

1 UNIT

Packaging Details:

Export standard

Delivery Time:

25 days

Payment Terms:

T/T

Highlight

2-3 axle skeleton semi trailer

20ft 40ft container trailer

semi trailer for shipping containers

Product Description

Advantages:
Lightweight design: simple structure, reduced deadweight, improved carrying capacity, and reduced fuel consumption.

Efficient transportation: suitable for container transportation, convenient loading and unloading, and improved logistics efficiency.

Strong durability: high-quality steel and enhanced welding technology are used to ensure long service life.

Wide adaptability: compatible with containers of different specifications to meet diverse transportation needs.

Low maintenance cost: simple design, easy to repair and maintain, and reduced operating costs.

Product name	Skeleton semi-trailer
Size	9700mm2550mm1850mm(Size optional)
Loading capacity	30T-100T (load capacity optional)
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 18mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm
Floor	8mm checkered plate
Side wall	Height 1600mm thickness 6mm
Axle	Fengbao, FUWA, BPW (Axle brand can be selected, and the number of axles can be 3 or 4)
Suspension	Mechanical suspension
Leaf spring	Leaf spring 10pcs9013mm
Tire	12R22.5 12pcs
Wheel rim	9.0-22.5 12pcs
Kingpin	2”/3.5” bolt-in /welded king pin
Landing gear	Two-speed, manual operating ,heavy duty landing gear 28T
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.
