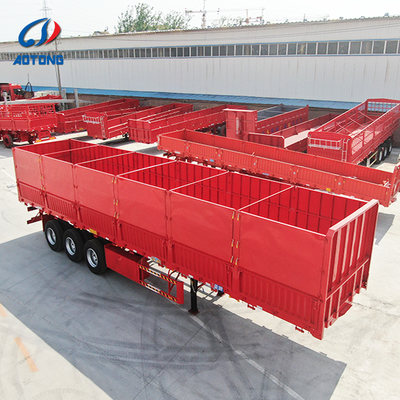

60T 3-Axle Side Wall Grain Trailer with Mechanical/Air Suspension

Products

Farm Trailer & Other Full Trailer

60T 3-Axle Side Wall Grain Trailer with Mechanical/Air Suspension

MOQ:	1 UNIT
Standard Packaging:	Export standard
Delivery Period:	25 days
Payment Method:	T/T

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

AOTONG

Certification

ISO,CCC

Suspension:

Mechanical Or Air Suspension

Tyre Specifications:

12R22.5

Main Beam:

Heavy Duty I Beam.

Kin Pin:

2’’/3.5’’ Bolt Type

Braking System:

Double Air Chamber ,brake Valve,45L Air Tanks ;ABS Optional

Electrical:

LED Light , 7 Ways ,24V

Painting:

Blasting And Clean Rust,1 Coat Of Prime Painting ,2 Coat Of Finish Painting

Highlight:

60T grain trailer with air suspension

3-axle side wall grain trailer

mechanical suspension grain semi trailer

Product Description

Tri axle grain trailer for sale is a trailer pulled by a truck tractor and used to haul bulk commodity products, such as grain. These side wall trailers are used extensively throughout the Africa to transport agricultural products as well as any other commodity that can be hauled in bulk and loaded and unloaded through the trailer.The small door of the grain trailer with bulk sides facilitates the loading and unloading of grain.

Tare Weight	About 7.6T
Dimension	12500mm2500mm2760mm(1200mm sidewall high)
Load Capacity(T)	≤60T
Axle	3 axles, 13T/16T, FUWA/BPW/TITAN Brand
Rim	9.00-22.5 9.75-22.5(Specially designed and for oversea markets)
Tire	12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)
Suspension	Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets)
Spring leaf	90(W)mm13(Thickness)mm10Layer or 10mm12mm12Layers(Specially designed for oversea markets)
King pin	JOST brand 2.0 or 3.5 inch(bolted or welded type)
Landing gear	JOST brand D200T or TITAN brand 28Tons
Main beam	Height: 500mm Upper Plate: 14mm Middle Plate: 8mm Bottom Plate is 16mm; Material: Q345B Steel
Side beam	16mm or 18mm steel channel(material: Q235steel)
Bottom Platform	3mm-thick checkered plate
Brake chamber	WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks
ABS	Optional
Twist Locks	Four, Eight or Twelve pieces(lifting type or twist screw type)
Valve	WABCO valve
Light	LED light (specially intended for oversea market)
Receptacle	7-pin Socket (for 7 wire harness)
Tool box	1m0.5m0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Semi Trailer Surface Coating	Sandblasted, anti-rust chassis surface is available with 1layer of anticorrosive primer and 2 layers of top coats

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.
