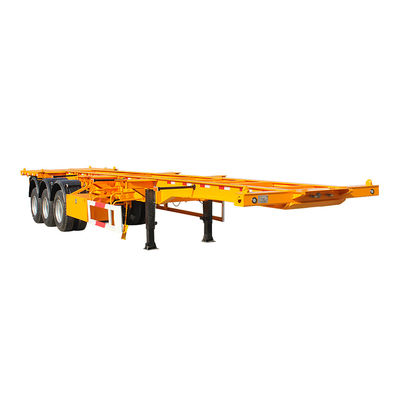

20 Feet Container Skeleton Semi Trailer 3 Axles Port Container Transportation

MOQ: 1 UNIT
Standard Packaging: Export standard
Delivery Period: 25 days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
AOTONG
Certification
ISO,CCC
Suspension:
Mechanical Or Air Suspension
Tyre Specifications:
12R22.5
Main Beam:
Heavy Duty I Beam.
Kin Pin:
2’’/3.5’’ Bolt Type
Braking System:
Double Air Chamber ,brake Valve,45L Air Tanks ;ABS Optional
Electrical:
LED Light , 7 Ways ,24V
Painting:
Blasting And Clean Rust,1 Coat Of Prime Painting ,2 Coat Of Finish Painting
Product Description


20ft 2Axle Container Semi Trailer, offer the container trailers to maximize the payload.Flatbed container trailer adopt advanced design concept. After fully understanding and analysing the transportation environment in different countries. Also the length of the trailers can be customized, like 45ft, 48ft, or 53ft container transportation trailers.

Skeleton Container semi trailer is designed for stevedoring and transporting 1x40', 1x 20'or 2x20'ISO Cargo Containers and loose cargos. To make sure the servise life of the semi trailers, all the apare parts we adopt are World Famous brand. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

Loading Capacity

 25-35tons

Axle

2 axles ,BPW/FUWA axle4

Tyre

8 pieces, 10.00R20,12R22.5


Dimensions(LxWxH)

7000mm x 2500 x 1550mm

Tare weight

5tons

Axle spacing

1310mm

Rims

8.5-20, 9.0-20

Suspension System

Leaf spring Suspension/Air suspension

Brake System

Dual line pneumatic brake system with WABCO emergency relay valve

Main Beam

Height 480mm Q345 carbon steel

Chassis

upper 14mm, lower 16mm. Mid web 8mm

Kingpin

2' or 3.5' interchangeable,JOST brand
Twist locks 12 units ISO THT brand

Landing Gear

28 Tons , Two speed manual operation

Electrical System

1.Voltage: 24v  2. Receptacle: 7 ways (7 wire harness) German standard

Lights and Reflectors

Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

Painting

Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available

Tool Box

One tool box with a set of standard trailer tools

Spare Tyre Carrier

One piece or two pieces
20 Feet Container Skeleton Semi Trailer 3 Axles Port Container Transportation 0 20 Feet Container Skeleton Semi Trailer 3 Axles Port Container Transportation 1
